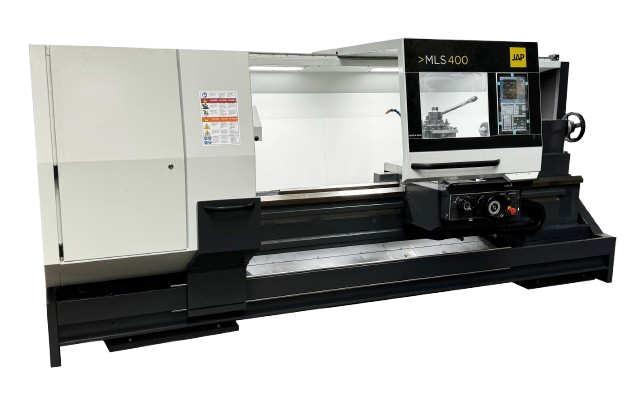

Conventional servo controlled lathe
The new MLS series are servo assisted manual lathes with visual programming using cycles. Easy to operate for a wide range of operations with minimum setup time. Extra wide bed offers the best rigidity and vibration absorption for the most demanding works.
STANDARD EQUIPMENT
OPTIONAL EXTRAS
- Control Fagor 8058
- Assisted cycles
- Touch screen
- Electronic handwheels
- Increased width and stiffness of the bed
- Headstock with variable speed 2 and 3 ranges
- Lubrication pump for the main spindle bearings
- Reducing brush of main shaft and dead center
- High precision main spindle bearings
- Dead center for tailstock
- Manual quick-change toolpost
- Electric spindle brake
- Interlocked chuck guard
- Emergency stop button
- Automatic central lubrication
- Full length rear splash guard
- Sliding front guard
- Fully guarded leadscrew
- Coolant system
- Heavy duty cast iron bed
- Levelling bolts
- LED Work light
- Instruction manual
- Verification standard DIN 8605
- CE Standard
- 3 and 4 jaw Chucks
- Rear chuck
- Fixed steady rest
- Large capacity fixed steady rest
- Follow rest
- Multifix quick-change toolpost
- Linear scale feedback
- Live center
- Transformer for other voltajes
- Chip conveyor
- Anti-vibration kit
STANDARD EQUIPMENT
- Control Fagor 8058
- Assisted cycles
- Touch screen 15”
- Electronic handwheels
- Increased width and stiffness of the bed
- Headstock with variable speed 2 and 3 ranges
- Lubrication pump for the main spindle bearings
- Reducing brush of main shaft and dead center
- High precision main spindle bearings
- Dead center for tailstock
- Manual quick-change toolpost
- Electric spindle brake
- Interlocked chuck guard
- Emergency stop button
- Automatic central lubrication
- Full length rear splash guard
- Sliding front guard
- Fully guarded leadscrew
- Coolant system
- Heavy duty cast iron bed
- Levelling bolts
- LED Work light
- Instruction manual
- Verification standard DIN 8605
- CE Standard
OPTIONAL EXTRAS
- 3 and 4 jaw Chucks
- Rear chuck
- Fixed steady rest
- Large capacity fixed steady rest
- Follow rest
- Multifix quick-change toolpost
- Linear scale feedback
- Live center
- Transformer for other voltajes
- Chip conveyor
- Anti-vibration kit
